Product ‐ jack-H2-CZ

Jack H2-CZ Overlocking Sewing Machine

Type of Machine

Overlock Machine

Machine Type

Motor Operated

Number Of Needles

1

Number Of Threads

2

Max Stitch Length

4 mm

Model Name/Number

H2-CZ

Presser Foot Lifting Height

7.5mm

Needle Bar Stroke

36.5mm

Usage/Application

Heavy Material Stitching

Body Material

Mild Steel

Number Of Stitches Per Inch

2

ISI Certified

Yes

Needle Size

7mm

Needle Gauge Millimetre

1/4"

Needle

DPx17 20-23#

Max. Speed

2200(s.p.m)

Volume

725x285x580mm(L*W*H)

Minimum Order Quantity

5


Description

    Basic Direct Drive Top Feed Lockstitch Machine

    1-needle lockstitch machine designed for sewing thicker materials (e.g. leather, upholstery materials), equipped with an energy-saving motor built directly into the machine head (Direct Drive system). This solution guarantees quiet operation and low electricity consumption. The machine also has a needle positioning function. Double transport (lower teeth and upper – rolling foot) ensures perfect movement of the upper and lower layers of stapled materials. The machine has a clear operating panel built into the head and LED backlight at the needle bar.

  • For Heavy Materials

    Top feed, 750W motor, extremely durable for heavy materials, sews 10 layers of medium-light leather with great results.

  • Sealed Presser Foot Bar

    Solid grease lubrication that eliminates oil stain problems.

  • Direct Drive Coaxial Motor

    Reduces energy loss, makes your machine fast, stable, durable and quiet.

  • Easy To Use Panel

    Control of simple functions and button for factory reset

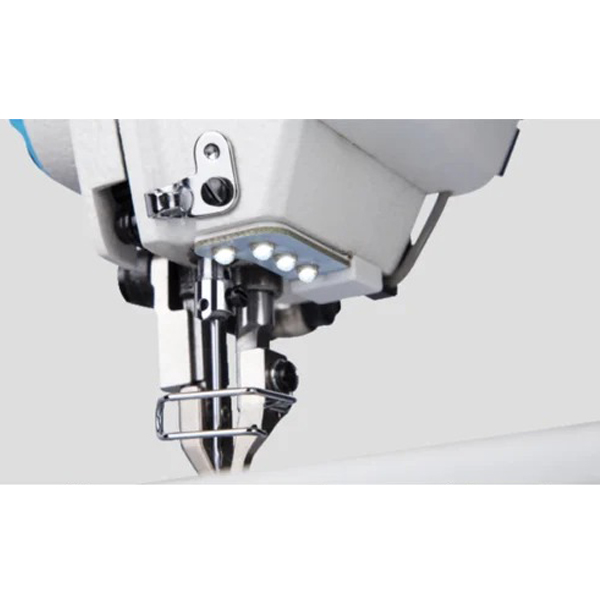

  • LED Light

    Equipped with 3 levels of LED lighting, it offers clear visibility, allowing greater comfort in processing and avoiding eye strain

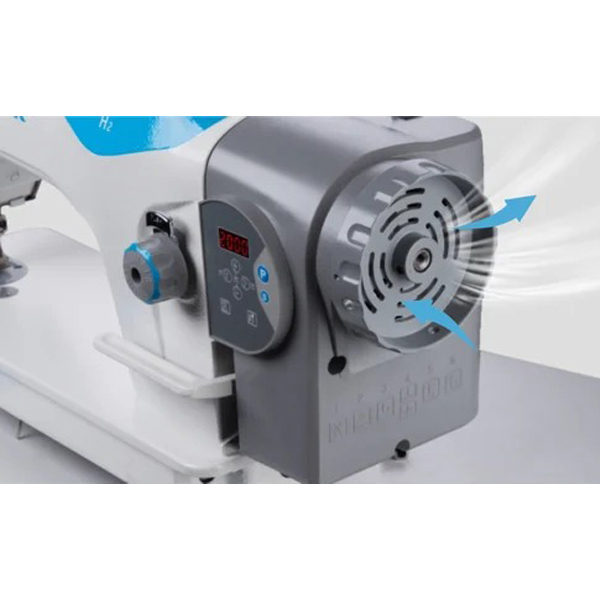

  • Cooling Fan

    Handwheel with cooling system, to reduce the engine temperature. Electronic control that increases the strength and durability of the components.
